ArcGIS Service Provider Setup

Follow these steps to connect Maptaskr Power Maps to your ArcGIS account and enable ArcGIS-powered mapping features:

Prerequisites​

Ensure you have an active ArcGIS service plan and a valid API key. (How to get an ArcGIS API Key)

Step-by-Step Setup​

  1. Open Provider Manager:

    • Go to the Package Manager tab in the Configuration area.
    • Select the Setup section.

  2. Configure ArcGIS Provider:

    • Locate the ArcGIS card and click Configure.

  3. Set Up Authentication Profile:

    • Click Edit Profiles to manage authentication profiles.
    • Select an existing profile or create a new one.
    • Enter your ArcGIS API key in the appropriate field.
    • Click Save to close the Edit Profiles dialog.
    More about Authentication Profiles

    Learn about authentication profiles and how they work: Authentication Profiles

  4. Test and Save Provider:

    • Click Test Provider to verify your configuration.
    • If the test is successful, click Save Provider to apply your settings.

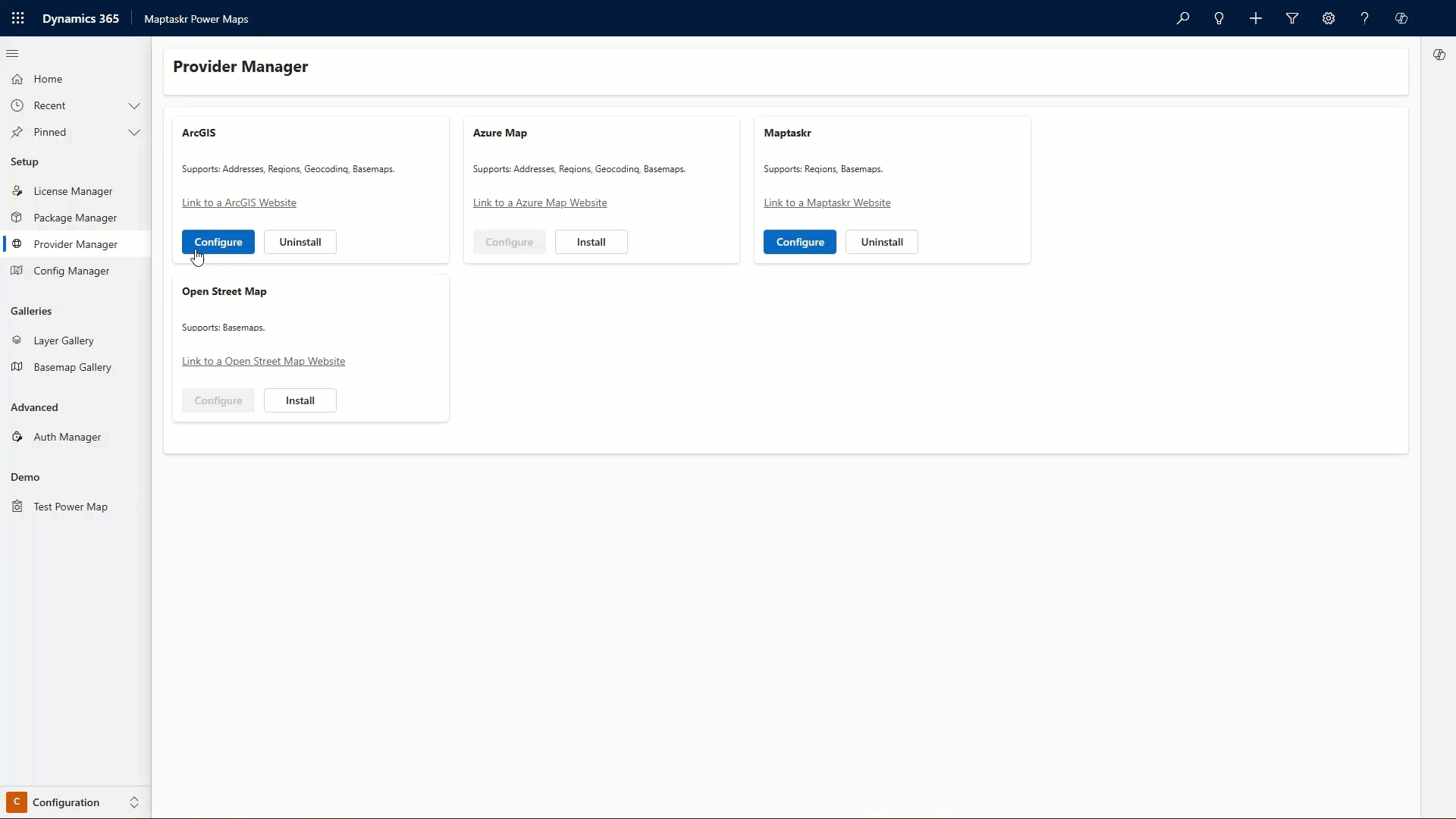

    Config ArcGIS API

Your ArcGIS provider is now configured. You can now use ArcGIS features such as base maps, geocoding, address search, and region search within Maptaskr Power Maps.
